Ground-Based Thermal Imaging for Building Heat Loss Assessment

Jan 30 / Volatus Academy




This blog explores how ground-based thermal imaging can be used to accurately identify heat loss, insulation defects, air leakage, and moisture issues in buildings. It explains the principles behind infrared thermography, the environmental conditions required for reliable surveys, and the methodology used to assess both internal and external building elements. By presenting typical findings and practical recommendations, the article demonstrates how thermal data supports evidence-based decision making, helping homeowners and organizations prioritize improvements, reduce energy waste, and manage budgets more effectively.

Introduction

Ground-based thermal imaging is one of the most effective ways to diagnose heat loss, insulation failure, air leakage and moisture issues in UK buildings. Unlike drone inspections, a ground-based survey allows the thermographer to work inside and outside the property, providing a complete picture of the building’s thermal behaviour.

Infrared thermography detects long-wave radiation in the 8–14 μm range, converting surface temperatures into clear thermal patterns. When conducted under correct environmental conditions, it reveals the building’s ability to separate heat flow, identify insulation performance, and highlight areas affected by moisture.

Environmental Conditions

Accurate thermography requires strict environmental control:

  • External surfaces free from solar gain for ≥1 hour
  • ≥10°C temperature difference between inside and outside
  • Dry surfaces and no recent rainfall
  • Low wind speed (<5 m/s)
  • Stable internal heating for several hours

These parameters ensure thermal patterns represent real heat loss, not environmental interference.

Methodology

The survey was completed in two phases: an external thermographic assessment followed by a detailed internal thermal inspection.

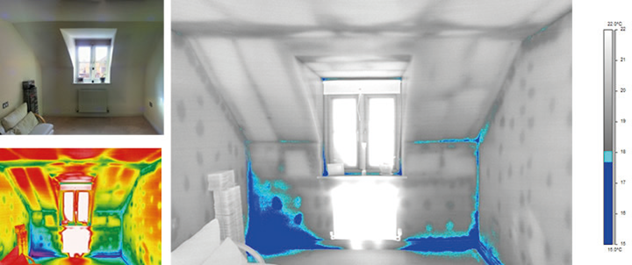

External findings included insulation gaps, thermal bridging, air leakage pathways and moisture related cooling patterns. Internal thermography provided surface temperature mapping, condensation risk analysis and air movement diagnostics.

Key Findings

  • Insulation gaps visible as irregular cold patches
  • Thermal bridging through lintels, floor slabs and corners
  • Air leakage at windows, doors and service penetrations
  • Damp related cooling at wall bases and corners
  • Cold internal surfaces with condensation or mold risk

Recommendations

  • Improve or replace insulation in identified areas
  • Reseal or upgrade window and door units
  • Investigate and remediate moisture sources
  • Install thermal breaks or insulated linings
  • Adjust ventilation strategy to maintain healthy humidity levels

Budget & Data-Driven Decision Making

In an era of rising energy costs, reviewing factual data from thermographic surveys is essential for determining exactly where budgets should be directed. By quantifying real areas of heat loss rather than relying on assumptions, these assessments ensure that any investment—whether in insulation, sealing, or moisture remediation—delivers maximum value. For organizations and homeowners working within tight budgets, this evidence-based approach prevents unnecessary spending and prioritizes the improvements that will have the greatest impact on reducing heat loss and long-term running costs.

Conclusion

This combined internal and external thermal survey provides a clear understanding of the building's energy performance. By identifying insulation weaknesses, air leakage, moisture behaviour and structural bridging, the assessment offers an evidence based pathway to improved efficiency, reduced heating bills and enhanced building longevity.
